We Are a Top Raised Floor Manufacturer in China
Please consider us if you are looking for a factory with reliable quality, large production capacity, and various product categories.
- We have 25 years of production experience
- Production Line: Steel, Aluminum, Calcium Sulphate Raised Access Floor
- Production Capacity: 5000m2 per day

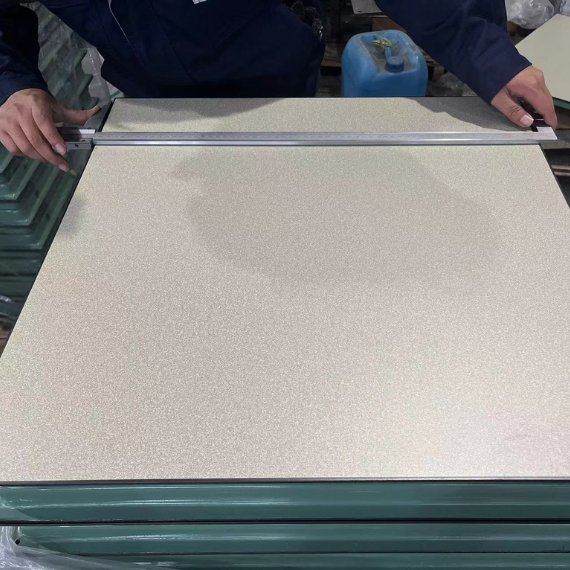

- Have 1st-item quality check for each progress and mock-up before packing
What are our main products?
Our company offers a wide range of products, covering almost all the raised floor system types, which will help you solve various needs.
Our main production lines include Steel Raised Floor systems, Aluminum Raised Floor systems, woodcore system raised floor and Calcium Sulphate Raised Floor systems.
The key advantages of our products are their high load-bearing performance, easy installation, and convenient wiring layout. These features enhance the aesthetics of public buildings while providing increased convenience.
Our products are primarily designed for floor decoration in modern office buildings, data rooms, cleanrooms, and industrial spaces.
Selecting the appropriate raised access flooring type and combination of grades can help you save unnecessary costs.
Steel Raised Floor systems
The false flooring system of this system is point welded by two formed steel plates into a shell, which is then filled with cement. So it is also called Concrete flooring system.
Office building floors
This floor only does epoxy painting and has no top-finish tiles. It is normally a corner-lock system.
Computer room flooring
We laminate 1.2mm or 1.5mm HPL tile on the top of the bare floor to achieve anti-static function.
Data center flooring
We laminate 2.0mm or 3.0mm PVC tile on the top of the bare floor to achieve anti-static or conductive function.
We laminate the rubber tile on the top of the bare floor to add decorative effect.
We laminate the carpet tile on the top of bare floor to avoid secondary decoration.
Anti-static flooring for server room
We offer many types of steel perforated floors to address your diverse ventilation needs effectively.
Raised access flooring pedestals
We offer various designs to match different grades of floors.
60cm and 120cm stringers & bracket to enhance the understructure loading performance
Aluminum Raised Access Floor System
Aluminum floor panels are die-cast from high-quality aluminum ingots in one go and then finely processed to specified dimensions.
600*600mm, 610*610mm
With or without painting
600*600mm, 610*610mm
PVC edge or Monolithic edge
600*600mm, 610*610mm
PVC edge or Monolithic edge
600*600mm, 610*610mm
Bare floors or with laminating finish
Calcium Sulphate Raised Access Floor system
This floor features a core made from specially crafted, environmentally friendly raw materials, expertly baked and pressed to ensure durability. Additionally, it is reinforced with steel plates or elegant veneers on all six sides, providing both strength and aesthetic appeal.
The anti-static floor needs to be laminated with 1.2mm or 1.5mm HPL tile on the top surface.
2.0mm or 3.0mm PVC tile will be laminated to the top to achieve the anti-static or conductive effect.
Ceramic can be laminated on the core directly
Ceramic can be laminated on the core directly
Top and bottom are all Galvanized steel sheets
We sell the core board directly with any size and thickness

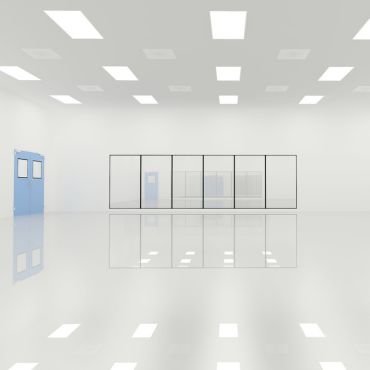

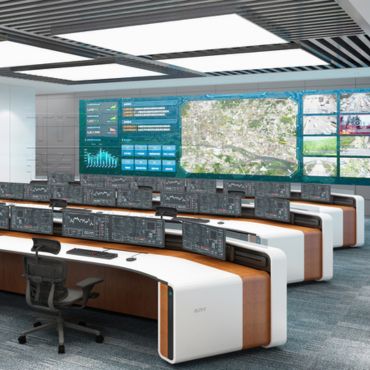

Our elevated flooring is widely used in multiple industries
Company Advantage
Do our products meet international standards?
Our Raised Access Floor products are manufactured in compliance with international standards such as ISO 9001 for quality management and American CISCA for raised flooring systems. All products are tested for performance, fire resistance, and load-bearing capacity, and are certified by accredited bodies including Intertek and SGS. For more detailed product certifications, please refer to the Declaration of Conformity and product datasheets.
How does our production quality inspection form a closed loop?
First, we require all incoming raw materials to be accompanied by a valid inspection report before they can be accepted into the warehouse. Our quality inspectors conduct random sampling and document the inspection data for each batch of materials.
Secondly, during the production process, we provide strict training and technical guidance for each worker at every production step. Quality inspectors perform a first-piece inspection at the start of each production phase, and production can only proceed once the quality inspector approves. Every 2 hours, the inspector will conduct another round of sampling to prevent defective products from being produced. All measurement data is manually recorded by the quality inspectors and submitted to relevant departments for review and archival.
Finally, upon completion of the finished product, both the quality inspector and sales representative will conduct an on-site trial installation to ensure proper installation. Only when the installation is confirmed to be error-free will the product move to the packing stage, ensuring that every product meets the customer’s quality standards.
Provide Custom Raised Floor System
We are a leading manufacturer of raised floors in China, equipped with state-of-the-art production lines and a team of expert engineers, including product engineers, mold engineers, and manufacturing equipment engineers. Customizing specialized products is one of our key strengths.
Simply share your requirements for customized raised floor products with us, and we will provide a comprehensive service package that includes:
- Designing detailed drawings based on your specifications
- Creating a sample after the design is confirmed
- Shipping the sample for your approval
- Fabricating molds
- Conducting trial production
- Final delivery
Throughout the process, we will maintain close communication with you on every detail. A dedicated sales representative will personally track your order from start to finish, ensuring smooth progress and timely delivery
Vast Production Capacity and Stock

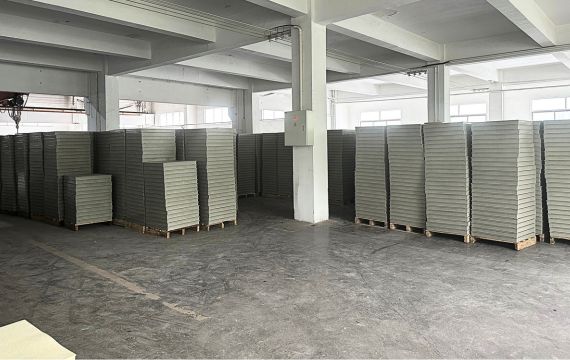

- We maintain a stock of over 10 containers for standard steel, aluminum, and calcium sulfate flooring models, ensuring immediate shipment for your urgent orders.
- With our semi-automated, fully integrated production lines, we achieve high daily output, enabling us to meet demands during peak seasons or large-scale projects with on-time delivery.
Factory Production Display
- Welcome to our raised flooring manufacturing facility, where innovation meets precision.
- With advanced production technology and expert craftsmanship, we provide high-quality raised flooring solutions for all types of projects.
- From production to installation, we ensure every panel meets the highest standards of excellence.
- Highlighting the significant investment put into the production line, which implies high quality and advanced facilities.
- Having 2 large furnaces, which can ensure sufficient melting and processing of aluminum materials for production.
- Equipped with 2 high-pressure casting equipment to help form high-quality aluminum floor products.
- A variety of machines like laser cutting machines, edge milling machines, etc. in the finishing process, enabling precise processing and improving the overall quality and appearance of the aluminum floors.
In our company team, there are more than 100 office management staff and 400 front-line workers in the workshop, totaling 500 people. Therefore, team cohesion is an important concern that cannot be ignored. Every year we organize a team trip to enhance the relationship between employees and team harmony.
At Himor Floor Company we believe that a strong, united team is the foundation of our success. Our regular team-building activities are designed to foster collaboration, enhance communication, and strengthen the bonds between our employees. These events reflect our commitment to creating a positive and supportive work environment where every team member can thrive. By promoting teamwork and mutual respect, we ensure that our employees are not only colleagues but also a closely-knit group working together towards shared goals.
Factory Own a Test Lab for Access Floor Systems with CISCA Standard
This equipment can do the loading test like: Concentrated Load, Design Load
Test Points have floor center, edge center, corner
This is also a loading test, but it is a uniform load.
Different grades will be will be subjected to different pressure values
The impact test is to use corresponding heavy objects to hit different areas of the floor to see if the system will collapse. No collapse means passing.
Rolling load simulates the physical deformation caused by heavy equipment moving on the floor. Similarly, different floor grades will have different rolling weights. The number of rolls has 10 passes and 1000 passes.
In order to meet different load requirements, our pedestal also have various designs. This equipment is used to test the ultimate force that the pedestals can withstand in the vertical direction.
- Production equipment
- Quality Check Gallery
- Specifications of Raised Floor
Our factory is equipped with several large-scale production machines designed to manufacture high-grade and high-specification raised flooring systems. Here are a few examples of the specialized equipment we use:
High-Tonnage Stretching Machines: These are essential for stretching steel panels thicker than 1.5mm, which are used in the base plates of our high-performance raised floors.
Powerful Welding Machines: For our high grade steel flooring, like FS3000, which consists of 2.5/1.9mm steel plates, we utilize heavy-duty welding machines to ensure the top&bottom plates are securely welded together, with no weak spots or defective joints.
Aluminum Floor Production: Our aluminum floors are produced using integrated furnace molding technology, requiring large equipment to shape the aluminum ingots into finished floor panels.
Integrated Production Lines: Given the large-scale domestic and international projects we handle every year, our factory is equipped with fully integrated production lines that ensure efficient, high-volume manufacturing.
These advanced machines are crucial in allowing us to produce high-quality raised flooring systems that meet the most stringent requirements for durability and performance.
1. Steel Raised Floor Specification
| FS800 Corner lock |
FS1000 Corner lock |
FS1250 Corner lock |
FS1500 Corner lock |
FS2000 Heavy Grade with stringer |
FS2500 Heavy Grade with stringer |
FS3000 Heavy Grade with stringer |
|
| Concentrate Load | ≥3560 | ≥4450 | ≥5562 | ≥6675 | ≥8900 | ≥11125 | ≥13350 |
| Ultimate Load | 1250kN | 1450kN | 1850kN | 2300kN | 3050kN | 4000kN | 4280kN |
| Impact Load | 0.45kN | 0.55kN | 0.65kN | 0.75kN | 0.85kN | 1.0kN | 1.0kN |
| 10 Passes Rolling Load | 2.7kN | 3.6kN | 4.4kN | 5.6kN | 6.7kN | 8.9kN | 12kN |
| 10,000 Passes Rolling Load | 1.8kN | 2.7kN | 3.6kN | 4.4kN | 5.6kN | 8.9kN | 10.6kN |
2. Aluminum Raised Floor Specification
3. Calcium Sulphate Raised Floor Specification
| Grade | Panel size (Thickness) |
Concentrated Load | Rolling Load | Ultimate Load |
Uniform Load | ||
| Encapsulated Bare Floor | EC1000 | 600×600×28mm | ≥4550N | ≥454 kg | ≥3560 | ≥13350 | ≥23000 |
| EC1250 | 600×600×30mm | ≥5560N | ≥567 kg | ≥4450 | ≥16680 | ≥33000 | |
| Anti-static Laminated Floor | P-EC1000 | 600×600×30mm | ≥4550N | ≥454 kg | ≥3560 | ≥13350 | ≥23000 |
| P-EC1250 | 600×600×32mm | ≥5560N | ≥567 kg | ≥4450 | ≥16680 | ≥33000 | |
*The above test data fully complies with the testing standards established by the United States Ceilings and Interior Systems Construction Association (CISCA).
A raised access floor system is an elevated flooring structure supported by pedestals, creating a gap between the floor and the building’s base. This space is used for routing electrical cables, data cables, HVAC systems, and other utilities.
Raised access floors offer flexibility, efficient cable management, easy maintenance, better cooling and airflow, and space optimization. They are ideal for offices, data centers, and server rooms where quick access to wiring is required.
Installation involves setting up adjustable pedestals on the subfloor, laying panels on top, and securing them. The process ensures a level surface for wiring and utilities, and it can be customized to meet specific load-bearing and height requirements.
Raised access floors are typically made from steel, aluminum, or wood core panels with various finishes like vinyl, carpet, or tile. Steel floors are commonly used for high load-bearing, while aluminum offers corrosion resistance and light weight.
Regular maintenance includes cleaning surface panels, checking for loose tiles, and inspecting cable pathways. Ensure proper ventilation, monitor weight loads, and address any damage to panels or pedestals to prolong system life.
