Aluminum Die- Cast Solid Panel
Panel Available Size：600*600*55mm 600*600*60mm
Performance：
- Non-porous nature and easy cleanability corrosion resistance,
- Lightweight, and recyclability
- A conductive gasket ensures continuous and steady conductivity
Introduction
Our aluminum panel adopts advanced high-pressure die-casting technology. Once the aluminum ingot is molten, it is precisely shaped through a one-time vacuum die-casting machine. This integrates the outstanding corrosion resistance and high-strength characteristics of aluminum alloy, ensuring superior quality and durability.
The panel surface can be coated with epoxy powder as per your specific needs. This enables the surface to achieve anti-corrosive, and highly wear-resistant effects, providing long-lasting performance and aesthetic appeal. Aluminum panel is widely used in military commands, space centers, data centers, ultra-clean electronic factories, and other high-demand places.
Technical Data
- Available Panel Grades
- Data Sheet
| Panel Grade | Panel Size |
| HLS300kg | 600*600*50mm |
| HLS500kg | 600*600*50mm |
| HLS700kg | 600*600*50mm |
| HLS1000kg | 600*600*55mm |
| HLS1200kg | 600*600*55mm |
| HLS1500kg | 600*600*55mm |
| HLS2000kg | 600*600*60mm |
| HLS2500kg | 600*600*60mm |
| HLS3000kg | 600*600*60mm |
- Different Aluminum panel grade have different panel thicknesses and back strength beams.
Lear more about aluminum solid floors
Top & Bottom view for the corner sample
Installation strucrure
Installation system with stringer
Conductive test of surface
Conductive: 104-106Ω
Static issipative: 106-109Ω
Light Grade and Heavy Grade Aluminum Floors
For heavy-grade floors, we do the following work:
- Thickening of the central area of the edge reinforcement
- Increase the height of edge reinforcement
- The four cross main bars in the center of the floor are designed in a curved arch shape
System reinforcement installation method
- Install Bracing Kit and Bracing Stringer
- Stronger H Steel Structure
Features:
· The bridging beam support provides optimum strength.
· It is available with electro-zinc and epoxy powder paint coating
· Finish floor height ranges from 300mm to 2000mm
·Spam: 1.2*1.2m, 1.8*1.8m, 2.4*2.4m
Aluminum Solid Floors List

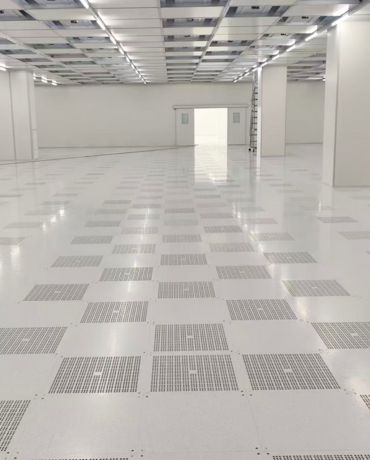

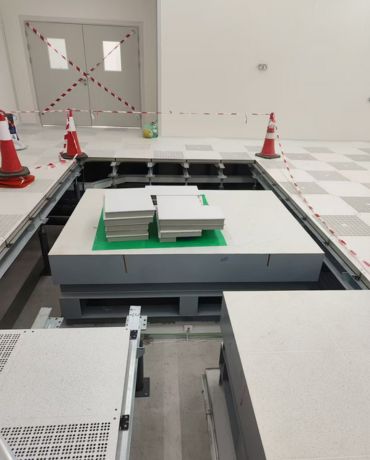

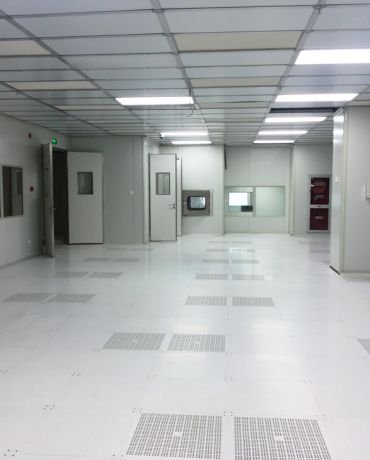

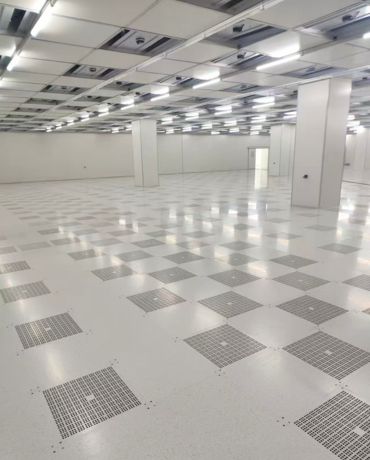

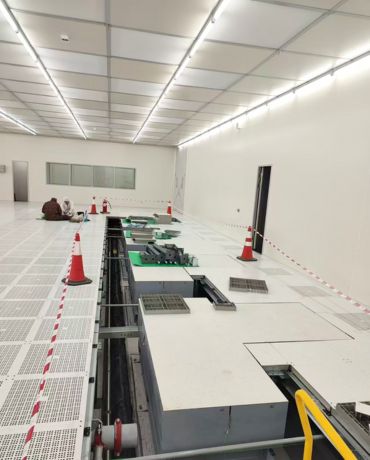

Job Reference
