45% Airflow Steel Ventilated Raised Access Floor
- Item Code: OM-450A(田 back design）
- Ventilation Rate: 45% Air Flow
- Standard Size: 600*600*35MM
- Available Finish: Anti-static Expoxy Painting/HPL Finish /PVC Finish
- Loading Capacity: 200kg~350kg (*according to different specifications)
- Perforated All-Steel construction
- Can Match Steel Damper
Product Overview
Our 45% airflow steel ventilated raised access floor is engineered for high heat density data centers and server rooms. It features long slot perforations for maximum air passage, with three interchangeable surface options: HPL anti-static finish, conductive PVC covering, and bare steel panel.
A steel air damper can be mounted on the panel rear to manually adjust airflow volume on-site, allowing HVAC engineers to balance underfloor air distribution precisely.
Another unique advantage: our grid back structure supports welding different steel thicknesses to meet varied load requirements for different project conditions.
We provide ultra-high definition top view, bottom view, side profile and damper open/close detail images, showing every structural feature clearly for client tender submission and technical review.
Application Areas
- High heat density Data Center / IDC Server Rooms
- Enterprise Computer & Network Rooms
- Telecom Base Station Equipment Halls
- Building Central Monitoring & Control Rooms
- Industrial Automation Control Rooms
- All projects using raised floor underfloor air cooling system
1. Three Surface Options & Application Scenarios
HPL Finish (High Pressure Laminate)
Scene of use:
Main server room aisles, office computer labs, monitoring control rooms, client-visible data center areas.
HPL surface delivers permanent anti-static performance, excellent wear resistance, rich color & texture selections. It protects the steel base, resists scratches from frequent foot traffic, and offers a neat finished look for areas visited by staff or visitors.
Conductive PVC Covering
Scene of use:
IDC server zones, telecom equipment rooms, low-budget IT computer rooms.
Soft conductive PVC surface is quiet underfoot, dust-resistant, easy to clean, and cost competitive. It is widely used in large data center projects where anti-static protection is required with controlled decoration budget.
Bare Steel (No Overlay)
Scene of use:
Mechanical equipment rooms, back-of-house technical areas, industrial control halls, temporary server zones.
No surface lamination, lowest material cost. The bare steel ventilated panel focuses purely on ventilation and load performance, for areas where aesthetics are not a priority.
2. Core Features & Unique Advantages
45% High Airflow Rate

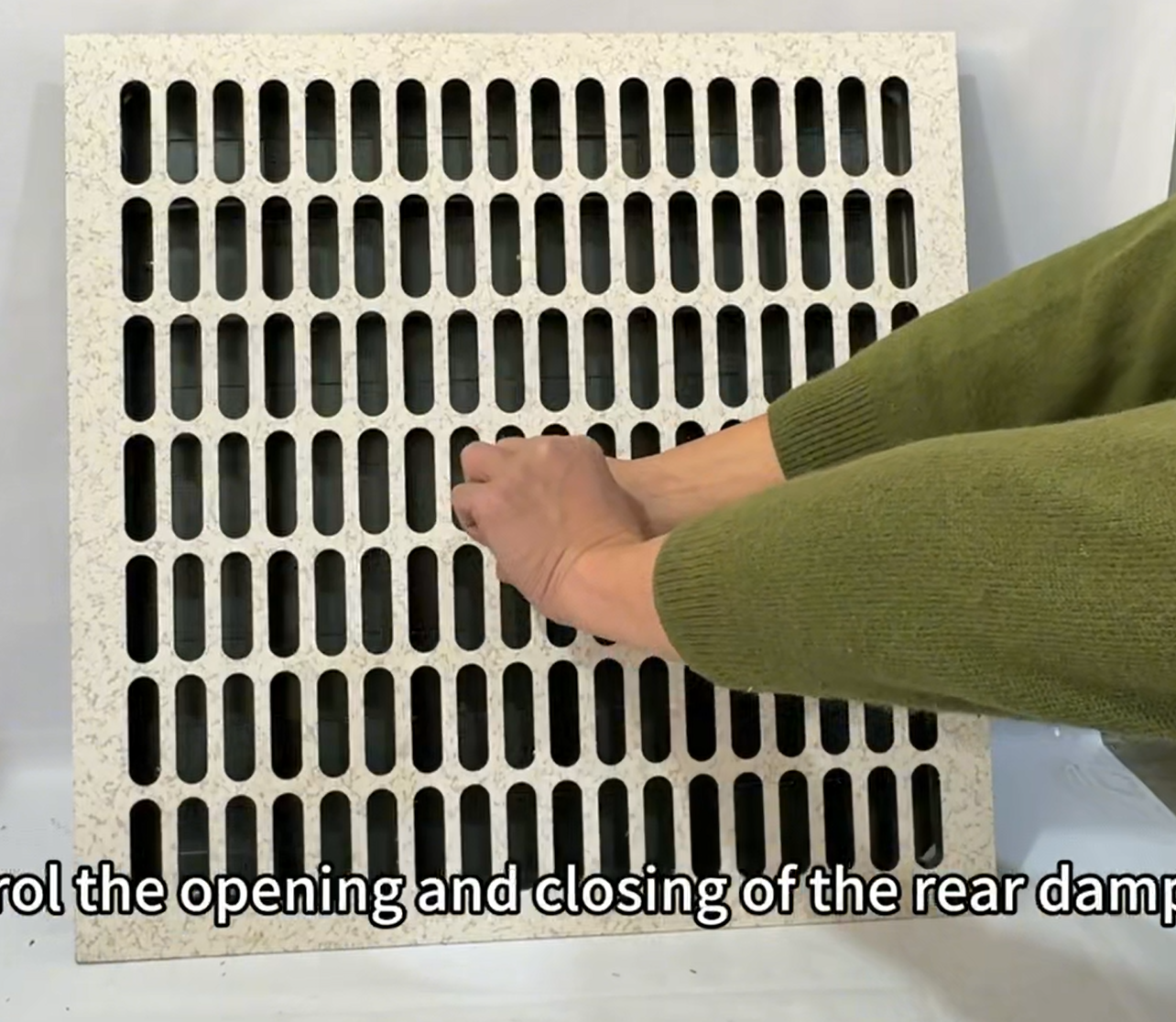

Rear Mounted Steel Air Damper (Air Volume Adjustable)
- Damper Open: full 45% airflow
- Damper Close: shut off air supply
- Intermediate positions: continuously adjustable air volume
HVAC technicians can tune cooling airflow panel by panel to balance cold air distribution across the whole raised floor system.
Custom Load Capacity: Weld Different Steel Thickness
This grid back design is our competitive highlight. We can weld different thickness steel sheets during manufacturing to achieve different load ratings.
For light, medium or heavy server rack loads, we adjust steel thickness accordingly without changing the outer dimension or 45% ventilation rate. This flexible structural design can match diverse project specifications, one panel mould for multiple load classes.
Standard Dimension: 600×600mm, compatible with all global raised floor pedestal & stringer systems
Our High-Definition Product Visuals
We supply exclusive high-resolution product photos showing top view, bottom grid structure, side profile, and damper open / damper closed comparison.
Most competitors only provide simple low-resolution product shots. Our detailed images clearly display the internal grid framework, damper working mechanism and surface texture.
These professional photos can be directly used for your tender documents, project proposals, website and catalogs, helping your clients fully understand the raised floor structure before sampling.
Related Products
Request Technical Datasheet & High-Res Image Pack of 45% Airflow Adjustable Damper Raised Floor. Contact us for project quotation, load customization and tender support.
The rear steel air damper is used to adjust airflow volume. You can increase or reduce cold air passing through each 45% airflow raised floor panel, to balance underfloor cooling for server racks with different heat loads.
Yes. The base steel ventilated raised floor is identical. You can mix HPL, PVC and bare steel panels within one raised floor system for different zones in the same building.
Thanks to our grid back design, we weld different thickness steel sheets. Thicker steel will deliver higher uniform load and rolling load, while keeping the 45% ventilation rate unchanged. We can adjust the load rating to meet your tender requirements.
